Sensors

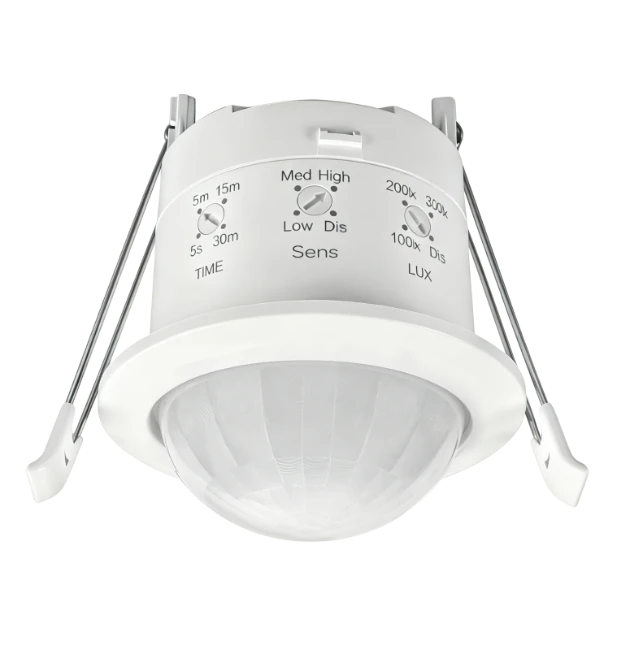

SmartSensor-Relay/Slave-PIR-L-ASY

Product Code
822001001200
  • Compact sensor range with Relay (230V) , DALI-2 Broadcast, DALI-2 input and Smart BLE2 versions
  • Large detection area of up to Ø 28m for the asymetric corridor versions
  • Adjustable sensitivity or daylight treshhold via rotary switches or remote controller
  • Compatible with the Opple Smart Lighting system (DALI input/BLE2 versions)
  • Surface mounting accessory available

Specifications Packaging Accessoires

Electrical data

Voltage type AC
Nominal voltage 220|240 V

Capabilities

Sensor technology Passive Infrared (PIR)
Detection angle 360°
Daylight balance Yes

Certificates and standards

Degree of protection (IP) IP20
Impact strength IK04
Material PC
Colour White
Finishing White RAL9003
Mounting method Flush-mounted
Width 84 mm
Height 16.0 mm
Diameter 84 mm
EAN codeEU HS CodePackagingAmountSize (L x W x H)Weight
693720962696785365005CT10.095 x 0.095 x 0.105 m0.1 KG
SmartSensor-Remote-Controller


Accessory Sensors - Remote control for sensor

Product Code
822001002000
SmartSensor-Surface-Module-D68


Accessory Sensors - Sensor surface module - 68mm

Product Code
822001002100
Surface mounted housing
SmartSensor-Surface-Module-D84


Accessory Sensors - Sensor surface module - 84mm

Product Code
822001002200
Surface mounted housing

Downloads

822001001200_ProductSheet_en.pdf
Smart_lighting_SIG_Mesh_manual_EN.pdf
Neutral_gb_822001001200.txt OPPLE_gb_822001001200.txt
