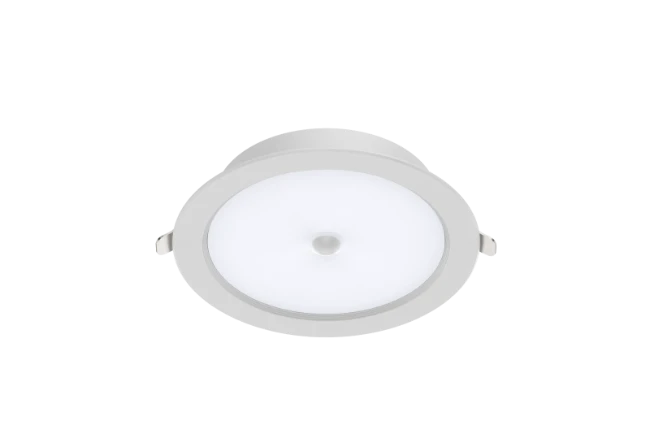

LEDDownlightCo-E2 Rd200-10/20W-830/840-PIR

Electrical data

Voltage type	AC
Power factor	0.8
Max. system power	20 W
Nominal voltage	220|240 V
With sensor	Yes
Max. inrush current	8.7 A
Inrush time	191
Frequency	50|60 Hz
Max. number of luminaires per miniature circuit breaker B16 (MCB)	56
Max. number of luminaires per miniature circuit breaker C16 (MCB)	56

Photometrical data

Colour temperature	3000|4000 K
Luminaire efficacy	120 lm/W
Equivalent to	CFL 2x26W
Colour consistency (SDCM)	4
Colour rendering index (CRI)	> 80

Light technical data

Beam angle	100°
Beam angle	100°
UGR	28

Lifespan

Lifetime (L70)	70000 h
Lifetime (L80)	50000 h
On-/Off-cycles	100000

Capabilities

Dimmability	On-Off
With sensor	Yes

Certificates and standards

Protection class according to IEC 61140	II
Degree of protection (IP)	IP20
Impact strength	IK03
Glow wire test	650°C
IP recessed part	IP20
Risk group (EN 62471)	RG0

Type of control gear	LED operating device current-controlled
With control gear	Yes
Driver failure rate (at 5,000 hrs)	1%
Input current	0.19 A

Housing colour	White
Finishing	White RAL9003
Optical material	PC
Cover material	PS

Length	220 mm
Width	220 mm
Height/depth	35 mm
Outer diameter	220 mm

Application temperature	25°C
Storage environment	-25|50°C
Operating temperature	-10|45°C
